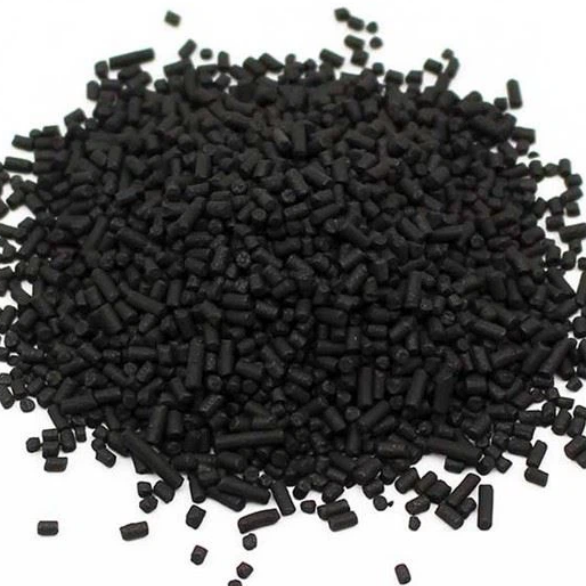

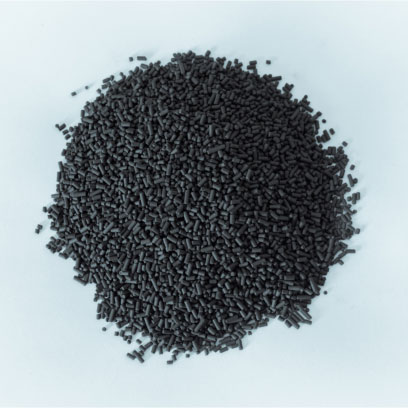

CMS Nitrogen Production Molecular Sieve

Description

Kanzich’s carbon molecular sieves have established themselves as the premier material of choice in the pressure swing adsorption (PSA) nitrogen production industry, thanks to their exceptional performance attributes.

Our company’s CMS series molecular sieves boast a comprehensive product portfolio, spanning from CMS-240 to CMS-330. Each variant is meticulously engineered to meet the diverse operational needs of our customers and maximize their operational benefits. Among our innovative offerings, the low-energy CMS-ES molecular sieve stands out as a groundbreaking advancement. This cutting-edge product provides customers with a revolutionary alternative, delivering remarkable energy savings of up to 10-20% and generating substantial economic returns for end-users.

In addition, our CMS-X product offers nitrogen generator manufacturers an unrivaled cost-performance edge in the highly competitive market landscape. Especially when the required nitrogen purity is ≤99.5%, this product significantly reduces adsorbent procurement costs, enabling manufacturers to enhance their market competitiveness.

Furthermore, our company is fully equipped to provide customized CMS solutions tailored to specific customer requirements, including adjustments to product diameter and specific gravity. Supported by our end-to-end, comprehensive service package, we are enthusiastic about forging collaborative partnerships with you to unlock shared success and embrace a future filled with even greater achievements.

Model	Adsorption pressure（MPaG）	Half cycle （s）	Nitrogen production concentration （N2%）	Nitrogen production rate （Nm3/h·ton）	Air nitrogen ratio （Air/N2）
CMS-250	0.7	40	99	325	2.13
		40	99.5	269	2.34
		40	99.9	151	3.31
		40	99.99	43	8.85
CMS-260	0.7	40	99	338	2.09
		40	99.5	283	2.30
		40	99.9	178	3.03
		40	99.99	82	6.36
		40	99.995	49	7.81
CMS-280	0.7	40	99	364	2.12
		40	99.5	313	2.37
		40	99.9	207	2.88
		40	99.99	100	4.20
		40	99.999	75	5.01
CMS-300	0.7	40	99	370	2.22
		40	99.5	325	2.40
		40	99.9	226	2.91
		40	99.99	136	4.33
		40	99.999	90	5.10
CMS-330	0.7	40	99	403	2.00
		40	99.5	341	2.17
		40	99.9	242	3.08
		40	99.99	156	5.07
		40	99.999	102	5.56
CMS-ES	0.7	40	99.5	395	2.04
		40	99.9	271	2.53
		40	99.99	167	3.42
