Description
Operating Conditions
- Inlet Temperature ≤40℃
- Ambient Temperature ≤40℃
- Operating Pressure 0.4~1.0Mpa
- Pressure Dew Point -20℃, -40℃, -70℃
- Operating Cycle 8 hours
- Adsorbent Activated Alumina/Molecular Sieve
- Inlet Oil Content ≤0.1PPM
- Average Regeneration Air Consumption ≤0%~2% (selected according to requirements)
- Power Supply 380V/50HZ

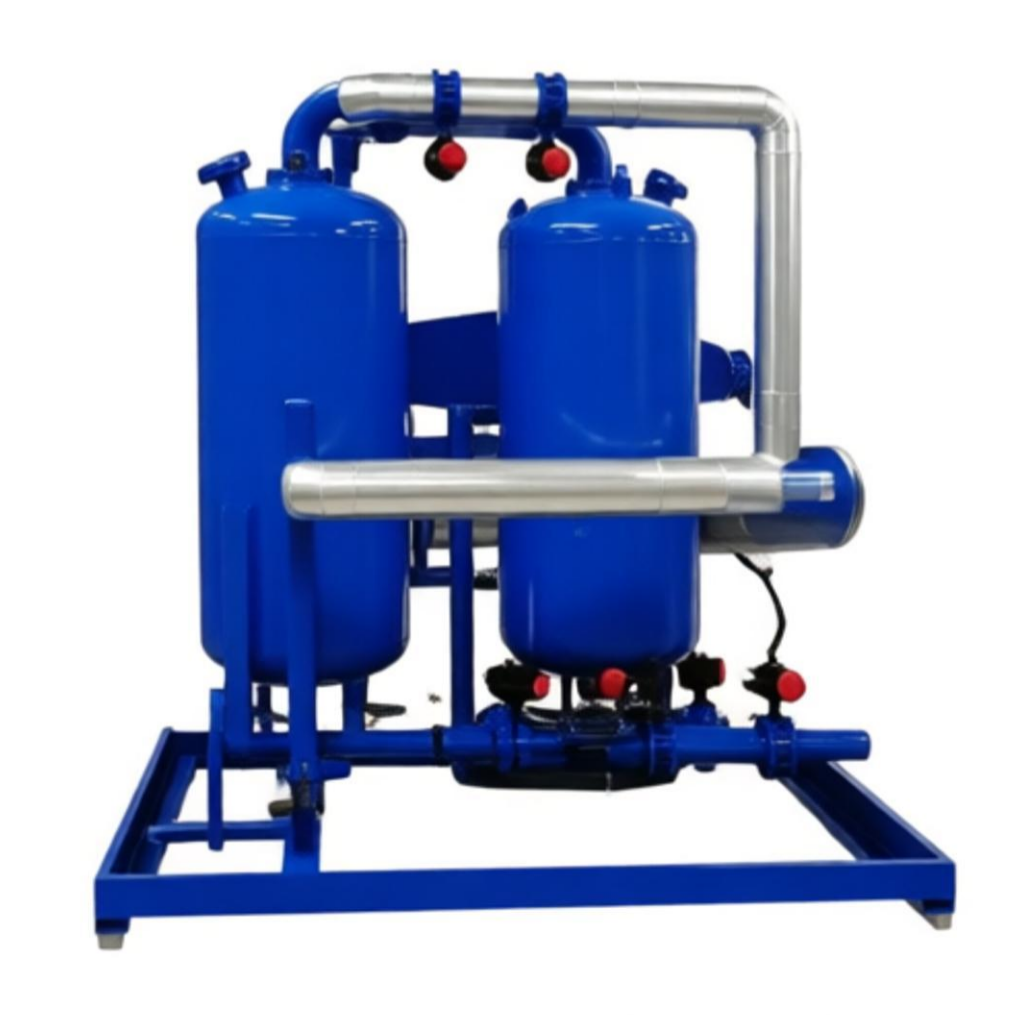

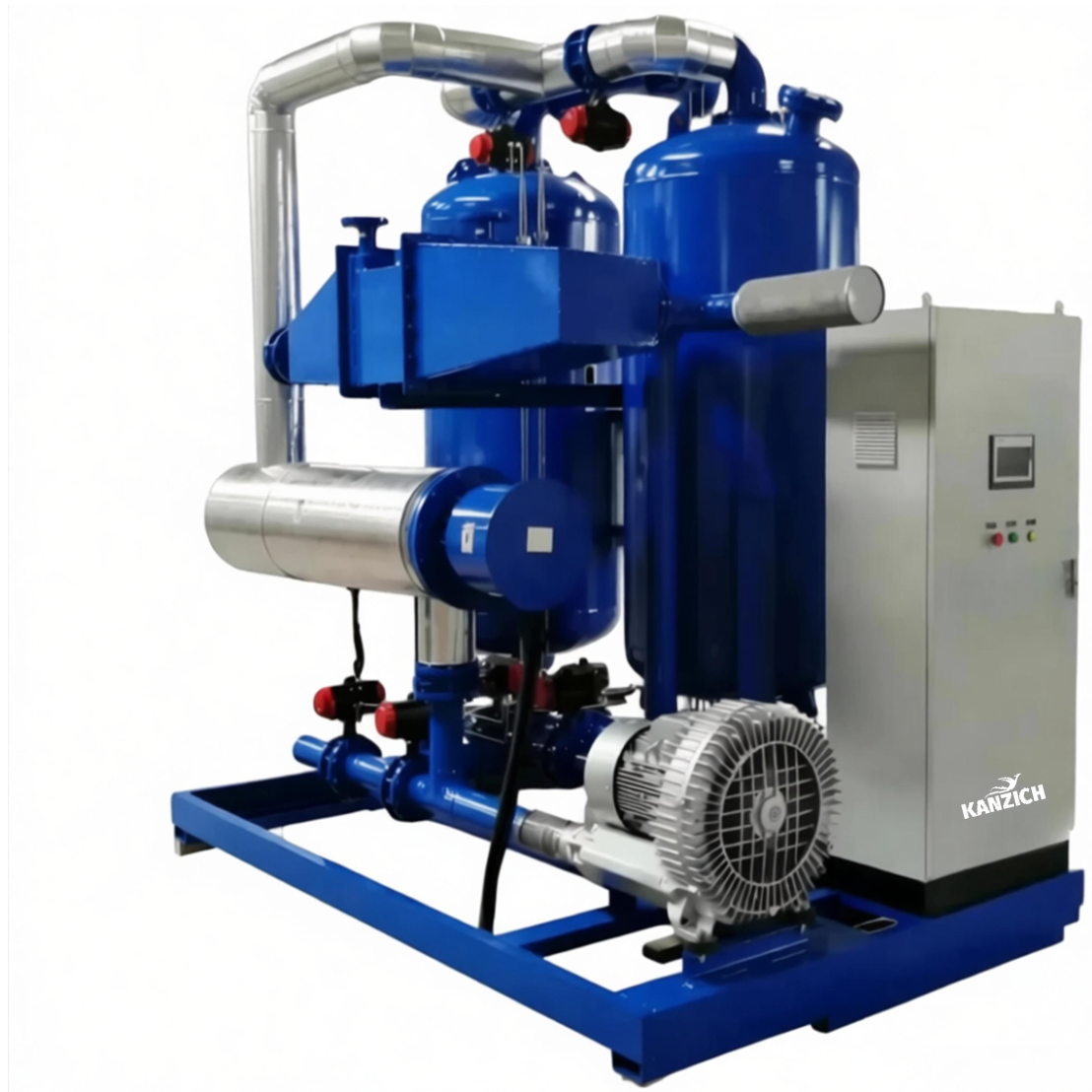

Features of the Blower Regenerated Adsorption Dryer:
① User-friendly design: Scientific and reasonable structural design, with an innovative and aesthetically pleasing appearance. It operates efficiently over long periods, has stable performance, and is easy to operate, maintain, and service. Installation is also simple (no foundation required).
② It utilizes the pressure swing adsorption principle, and the cycle duration can be programmed according to operating conditions. Various control modes can be selected based on customer needs, such as PLC control, remote monitoring, dew point display, and signal transmission functions.
| Model HR-GRD | 220 | 290 | 350 | 450 | 550 | 650 | 750 | 850 | 1000 | 1400 | 1600 | 1900 | 2100 | 2400 | 2600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Processing Capacity m³/min | 22 | 29 | 35 | 45 | 55 | 65 | 75 | 85 | 100 | 140 | 160 | 190 | 210 | 240 | 260 |
| Blower Power KW | 3.3 | 4.5 | 5.5 | 7.5 | 8.8 | 11 | 13 | 14 | 18 | 22 | 25 | 30 | 35 | 40 | 45 |
| Heating Power | 12 | 16 | 25 | 30 | 42 | 50 | 58 | 65 | 80 | 96 | 110 | 145 | 160 | 180 | 200 |
| Dimensions (mm) Length |
1500 | 1900 | 2100 | 2600 | 2850 | 3000 | 3100 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 |
| Dimensions (mm) Width |
1600 | 1860 | 2200 | 2300 | 2500 | 2680 | 2800 | 2900 | 3000 | 3200 | 3300 | 3380 | 3500 | 3550 | 3600 |
| Dimensions (mm) Height |
2600 | 2800 | 2900 | 3000 | 3100 | 3150 | 3200 | 3260 | 3300 | 3350 | 3400 | 3460 | 3500 | 3580 | 3650 |
| Air Inlet and Outlet Diameter | DN65 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN1200 | DN200 | DN200 | DN250 | DN250 |
| Weight (KG) | 1300 | 1800 | 2000 | 2800 | 3500 | 4000 | 4600 | 5600 | 6450 | 7900 | 9000 | 9800 | 11000 | 13000 | 15000 |
