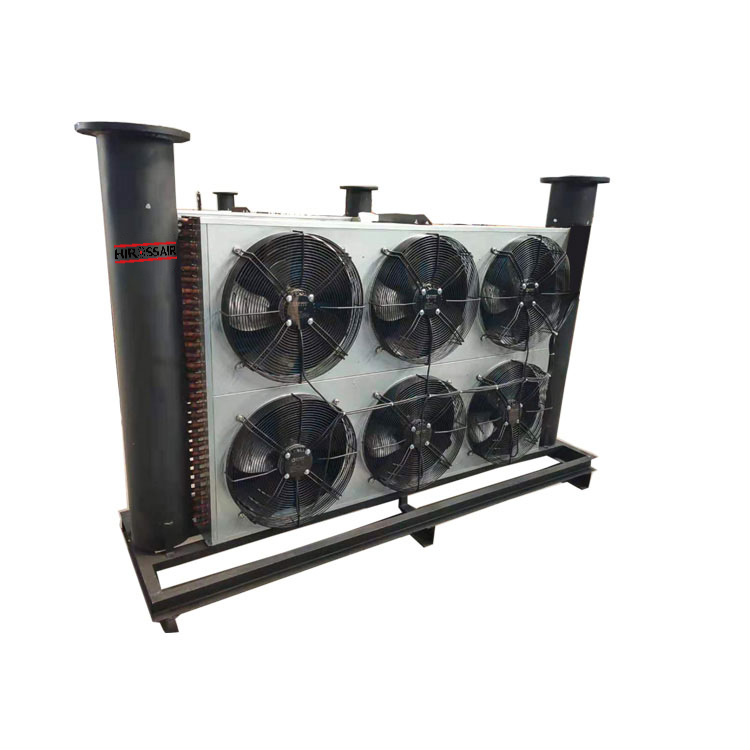

HR Series rear cooler

HR Series rear cooler

Technical Parameters‌

  • Rated working pressure: 0.6–0.95 MPa(g)
  • Inlet and outlet air temperature: ≤80°C
  • Outlet temperature: ≤45°C
  • Cooling water temperature: 2–35°C
  • Ambient temperature: 38°C
  • Pressure drop: ≤0.015 MPa

‌Product Features‌

  • High efficiency, stable performance, safe and reliable operation, easy installation
  • Heat exchange medium flow: air flows through the heat exchange tubes (double pass), cooling water flows through the shell side
  • Heat exchange tubes made of high-efficiency externally finned purple copper tubes
  • Equipped with an automatic drain device
Category:

Description

Rear Air-Cooled Cooler Specification Sheet (Standard Type)

Model Nominal Volumetric Flow Rate (m³/min) Power Supply (V/Ph/Hz) Rated Power (W) Air Inlet Pipe Diameter External Dimensions (mm) Weight (kg)
HR-1FLH 1 220V/1PH/50Hz 38 R1/2″ 350×240×560 15
HR-15FLH 1.5 220V/1PH/50Hz 55 R1/2″ 420×340×555 25
HR-28FLH 2.8 220V/1PH/50Hz 120 R1″ 555×440×555 40
HR-38FLH 3.8 220V/1PH/50Hz 120 R1″ 555×440×645 50
HR-69FLH 6.9 220V/1PH/50Hz 140 R1-1/2″ 560×262×500 60
HR-110FLH 11 220V/1PH/50Hz 250 R2″ 680×350×645 80
HR-150FLH 15 380V/3PH/50Hz 750 DN65 830×405×745 120
HR-220FLH 22 380V/3PH/50Hz 750 DN65 890×440×785 130
HR-290FLH 29 380V/3PH/50Hz 1950 DN80 1300×530×1070 200
HR-350FLH 35 380V/3PH/50Hz 1950 DN80 1270×550×1070 220
HR-450FLH 45 380V/3PH/50Hz 2200 DN100 1270×550×1070 225
HR-550FLH 55 380V/3PH/50Hz 3000 DN100 1270×600×1070 250
HR-650FLH 65 380V/3PH/50Hz 3000 DN125 1340×800×1240 300

Rear Water-Cooled Cooler Specification Sheet (Standard Type)

Model Nominal Volumetric Flow Rate (m³/min) Cooling Water Inlet Pipe Diameter Cooling Water Flow Rate (t/h) Air Inlet Pipe Diameter External Dimensions (mm) Weight (kg)
HR-150SLH 15 Rcl-1/4 5.1 DN65 1426×280×280 100
HR-220SLH 22 Rcl-1/4 5.1 DN65 1426×280×280 102
HR-290SLH 29 Rcl-1/2 9.9 DN100 1450×365×412 160
HR-350SLH 35 Rcl-1/2 9.9 DN100 1450×365×412 165
HR-450SLH 45 Rcl-1/2 13.2 DN100 1450×365×412 170
HR-550SLH 55 Rc2 16.5 DN125 1702×390×452 255
HR-650SLH 65 Rc2 19.2 DN125 1702×390×452 260
HR-850SLH 85 Rcl-1/2 24.0 DN150 2152×445×535 340
HR-1000SLH 100 Rcl-1/2 30.1 DN150 2150×390×452 350
HR-1500SLH 150 Rc3 45.0 DN200 2806×500×589 450
