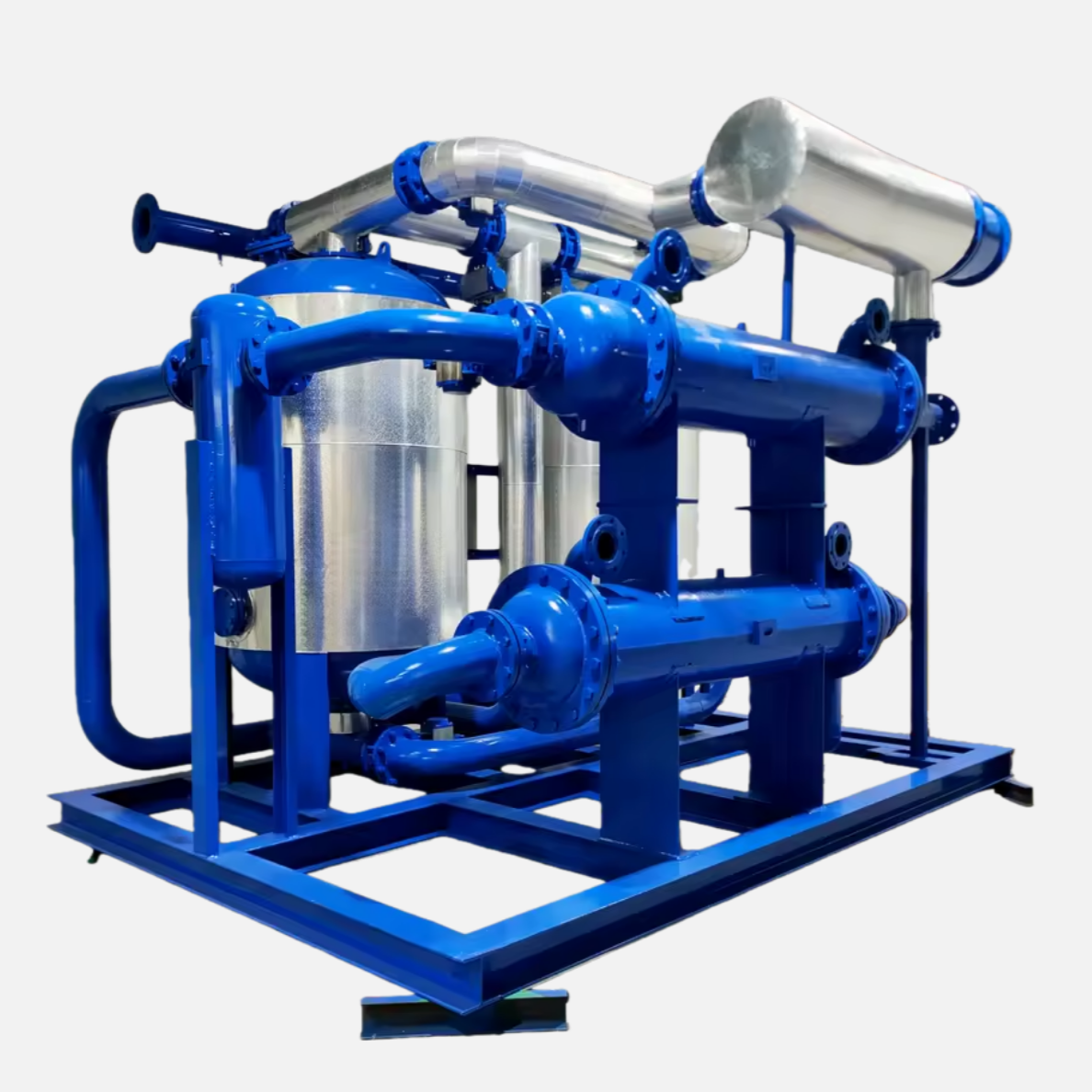

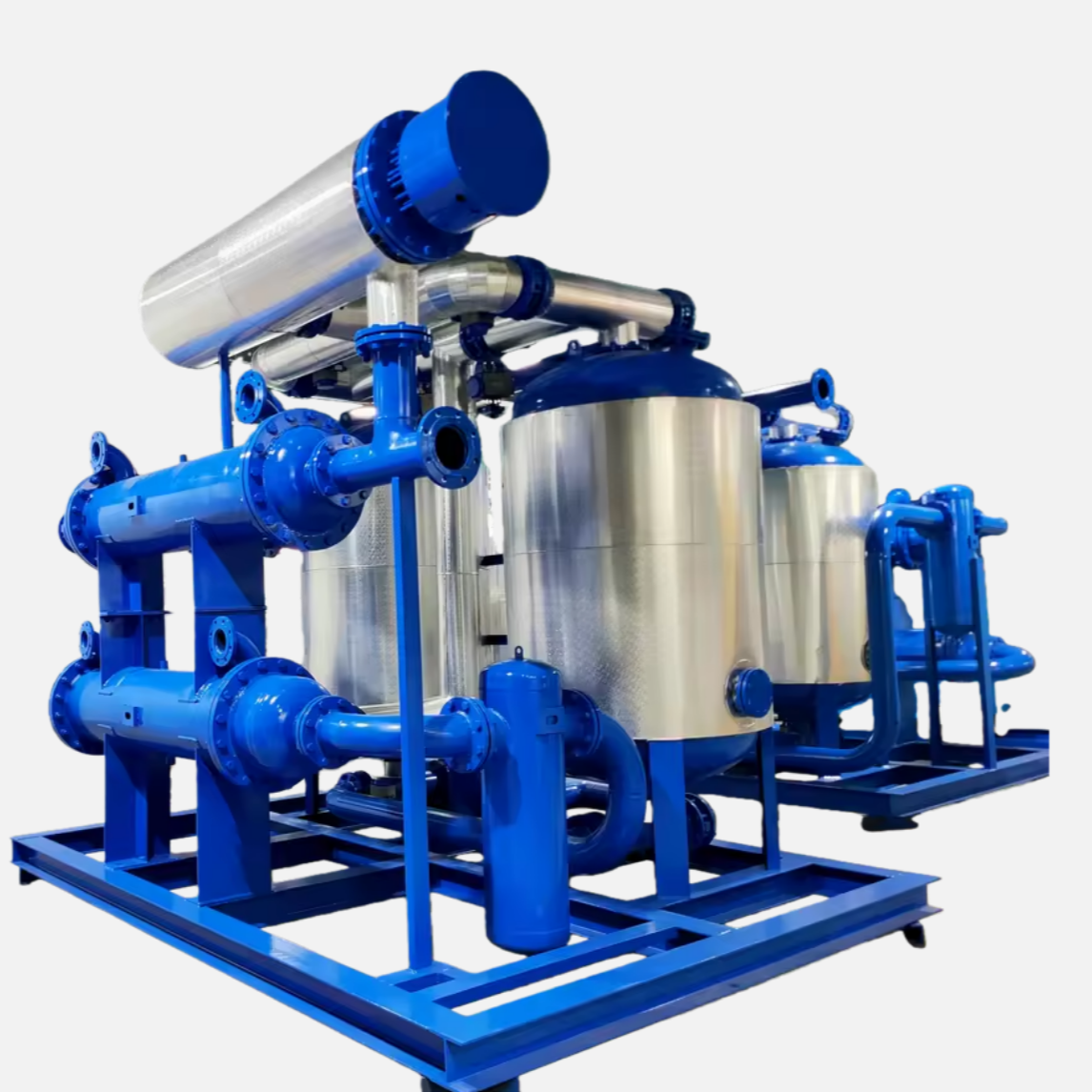

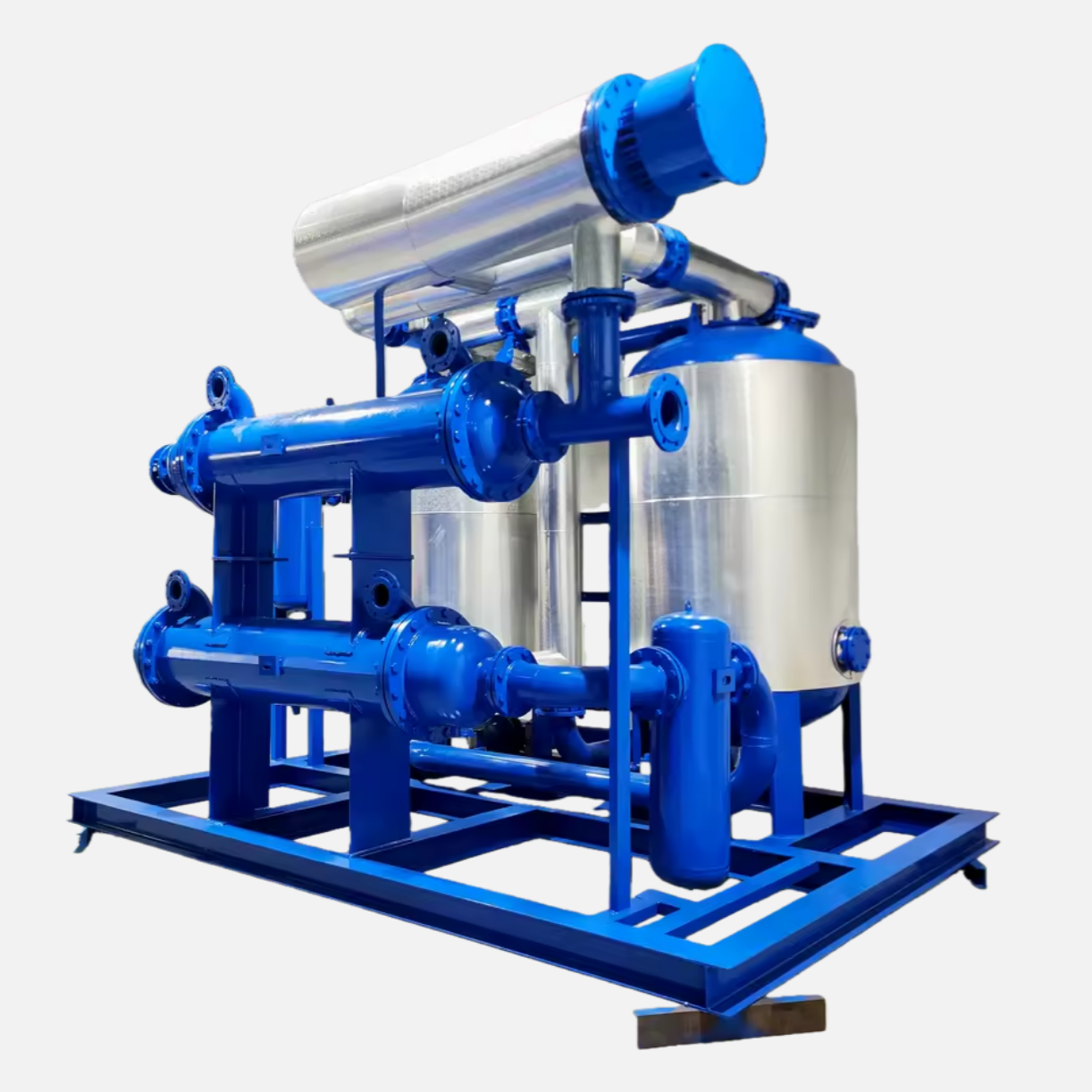

Compressed Heat Adsorption Dryer

Description

Standard Configuration

• Aftercooler
• Air-Water Separator
• Automatic Drain Valve
• Process Flow Display
• LCD Display, PLC Control
• Drying, Regeneration and Heating Status Display
• RS485 Communication Interface Provided
• Stainless Steel Inlet/Outlet Filter Mesh
• Malfunction Alarm
• Safety Valve
• Silencer
• Pressure Gauge

Features

• Highly energy-saving
• Three-level drainage function
• High protection IP55 rating

Specifications

• Cooling water temperature: 2~34℃
• Cooling water pressure: 0.2~0.6MPa
• Pressure dew point: -20℃~-40℃
• Average regeneration air consumption ≤0%~2% (selected according to requirements)
• 8-hour standard cycle
• Pressure loss ≤0.04MPa

Special Customization

• Pressure dew point: -70℃
• Special media such as CO₂, H₂, etc.
• High pressure ≥1.0MPa
• Low pressure ≤0.7MPa
• Stainless steel components
• Auxiliary heater, steam heating
• 16-hour cycle

Compressed Heat Regenerative Dryer

Notes

1. If the inlet temperature is below 120℃, it is recommended to install an auxiliary heater to ensure stable thermal regeneration.
2. Standard air processing conditions (air inlet pressure: 0.7MPa; air inlet temperature: 120℃; cooling water temperature: 30℃; average regeneration air volume: 0%~2%)
3. For more processing capacities or special specifications, please contact the relevant personnel of Haines Business Department.
4. Changes to the above parameter table, specifications, colors or other information will not be notified separately.
5. This document is for reference only and has no legal significance. The actual configuration, data and other information shall be subject to the content of the contract signed by both parties.
