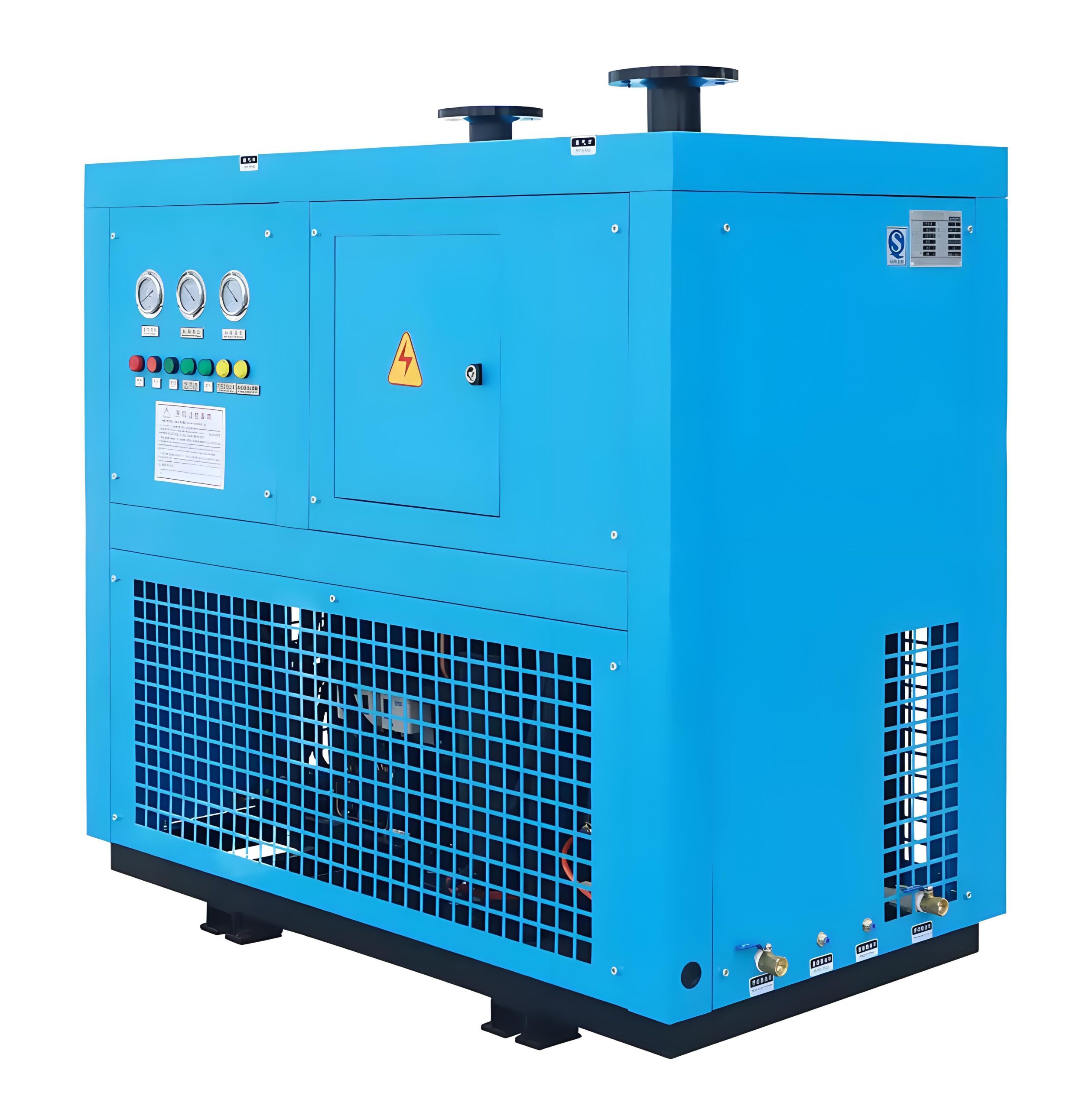

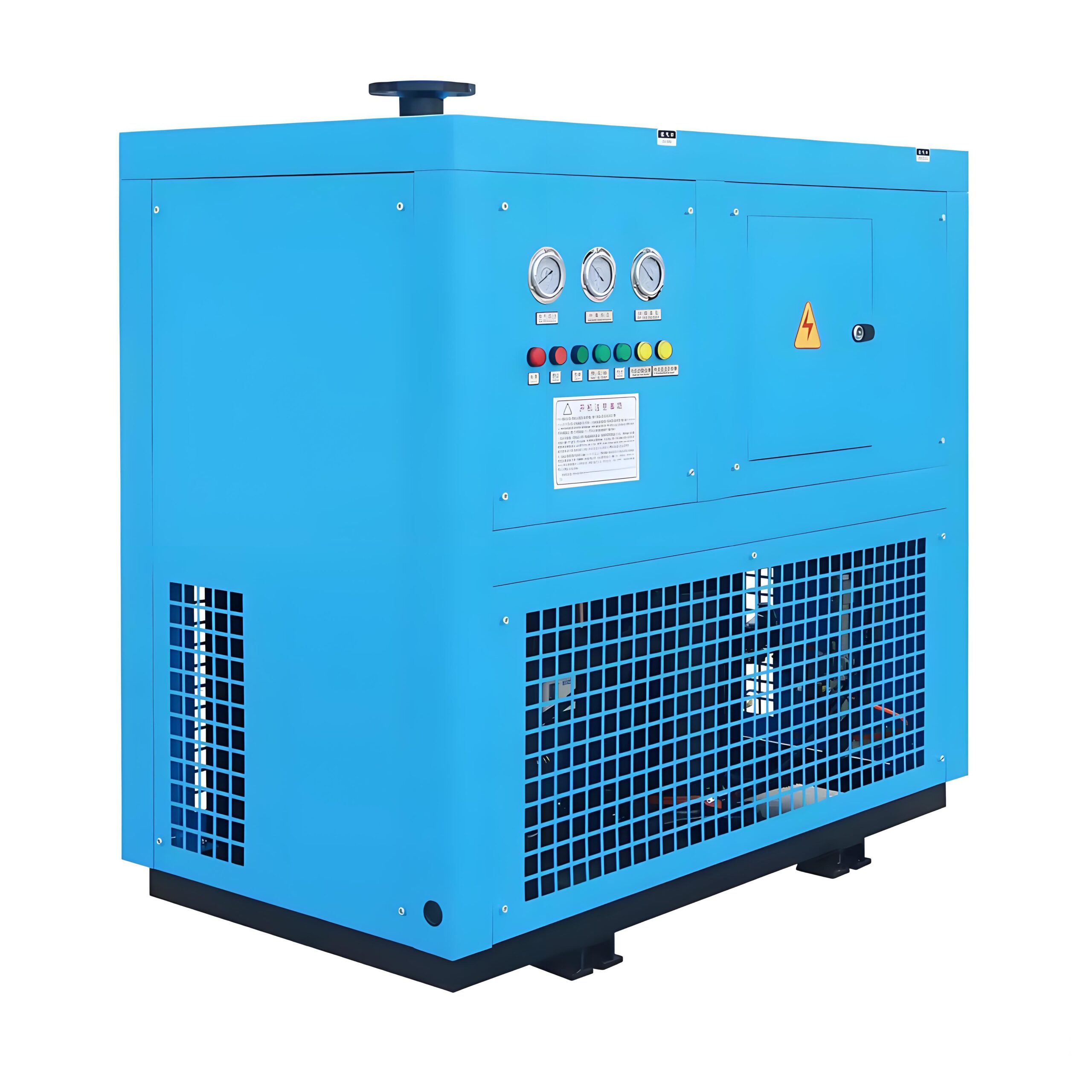

Cooling-free water-cooled dryer (ultra-efficient two-stage cyclone dual cooling)

Advantages and Features Introduction:

1. It adopts the existing 7~10℃ ice water in the factory, utilizes the ice water to exchange heat with compressed air, eliminating the need for a refrigerant compressor, saving power and being environmentally friendly.
2. This equipment adopts a dual-tube dual-cooling system, dual cyclone and stainless steel mesh filtration for water removal, enabling efficient filtration and water removal.
3. This equipment adopts a counter-flow air heat exchange system with a large heat exchange area, higher energy recovery rate, and reduced energy consumption.
4. The evaporator of this equipment is designed to be withdrawable, which facilitates cleaning after scaling, making maintenance and servicing more convenient.
5. This equipment cancels the traditional externally added cyclone separator and adopts an outer cylinder design. The dual heat exchange system is equipped with a wave-type cyclone and stainless steel mesh filtration for efficient water removal.
6. The whole machine of this equipment has no elbow design, which effectively reduces pressure drop. The overall machine pressure drop can be as low as ≤0.015MPa, while the traditional machine pressure drop is 0.035MPa, effectively reducing the power consumption of the air compressor and saving costs for users.
7. The equipment has a low failure rate, requires no servicing and maintenance, saving labor costs.
8. This equipment is equipped with an air inlet pressure gauge and an outlet pressure gauge, which can monitor the pressure drop status at any time. It is also equipped with a cooling water pressure gauge to monitor the cooling water pressure status.
9. This equipment is equipped with an inlet temperature display, an outlet temperature display, a cooling water inlet temperature display and a cooling water outlet temperature display, which can monitor the operating status of the machine at any time.
10. This equipment is designed with a dual water pump configuration, with one in use and one as a backup, ensuring the normal operation of the cooling water.
11. The equipment has a small size and is easy to install. It is available in two designs: naked machine without a cabinet and with a cabinet. The filter is an optional accessory configured according to customer needs.
